Cylinder Stoves - Window Plate Kit

Its better to have it and not need it than need it and not have it. Prepare for difficult times or power outages with this wall plate kit that makes it possible to Easily use your Cylinder Stove inside your house, garage, or any building with a window. it come with the 5″ wall plate, one 5″ elbow for the stove, and one 6″ elbow for the top of your stove pipe to keep wind from blowing back down the pipe.

This kit includes the window wall plate, 1- 5″ elbow, and 1- 6″ elbow.

Wall Plate-

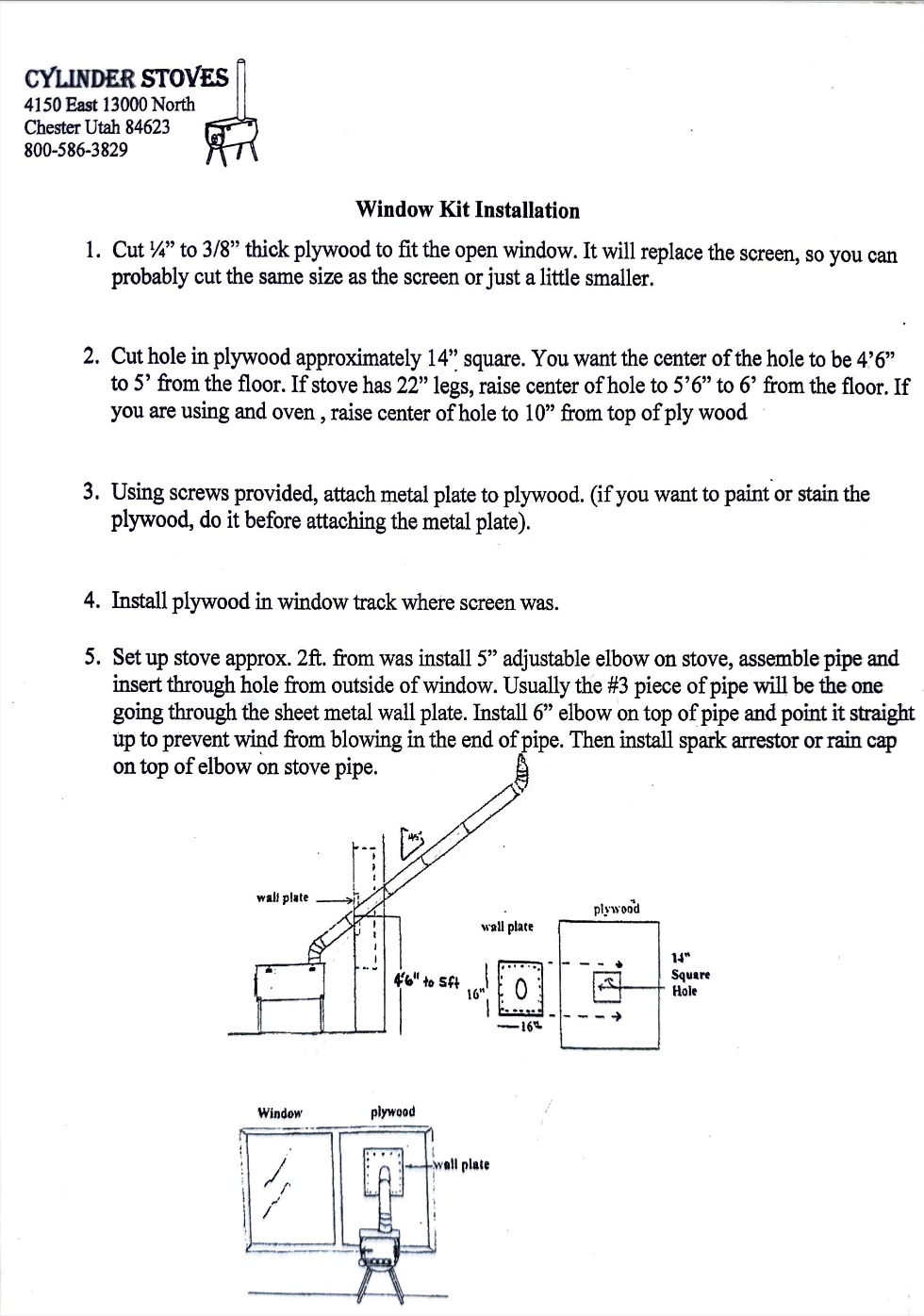

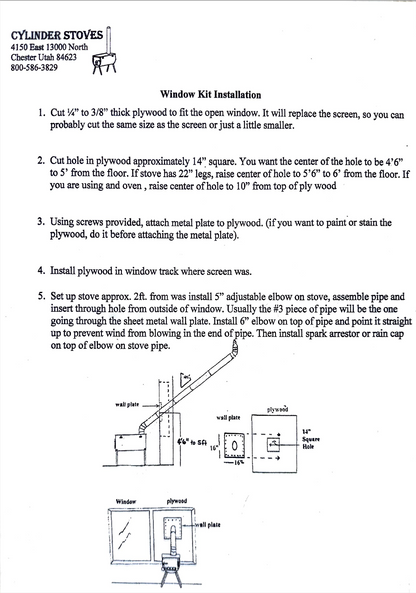

16×16 galvanized 24 GA sheet metal plate with oval hole in center cut to fit #3 section of nesting stovepipe on approx. 45 degree angle. Cut a 14×14″ square hole in wall and mount plate with screws (incl.) on outside of wall. For single layer walls only. Can be used in a window if screen is replaced with plywood.

Elbows-
Made of heavy duty 26 GA galvanized sheet metal. Adjusts from straight to 90 degree. Used for tents with stovepipe going out the sidewall or end of tent. Usually works best to put elbow right on stove at about 45 degree angle and run pipe out at same 45 degree angle to prevent wind from blowing in end of pipe.
